Merge request scan result doesn't display static images for on-prem GitLab

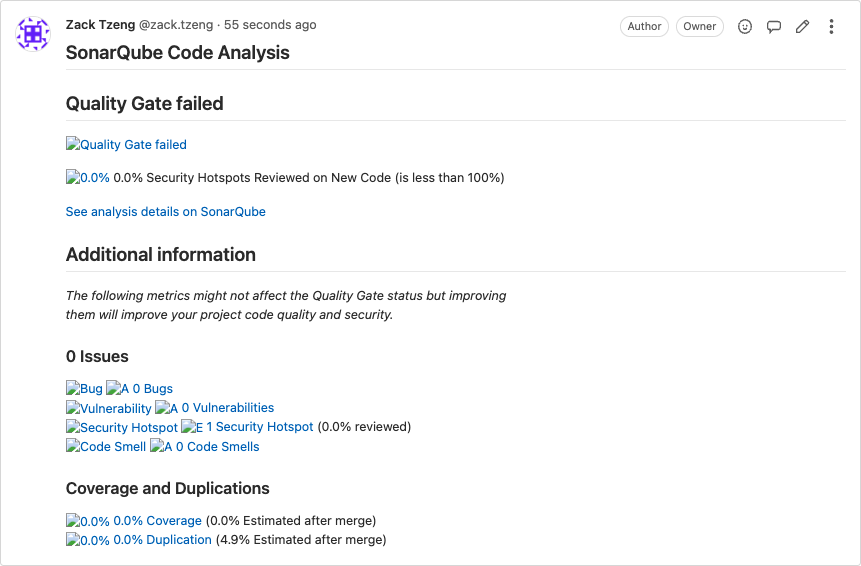

Hi I’m using the on-prem enterprise edition version 9.4. I couldn’t get the MR scan to show properly.

There are a few posts talk about solution but they use, not self-hosted GitLab.

Another interesting thing I noticed was that the browser console showed that http traffic is converted to https. Not sure if that does anything.

I set sonar.core.serverBaseURL to my SonarQube server url with http. But that still didn’t help. I’m only using IP and not a proper domain name.

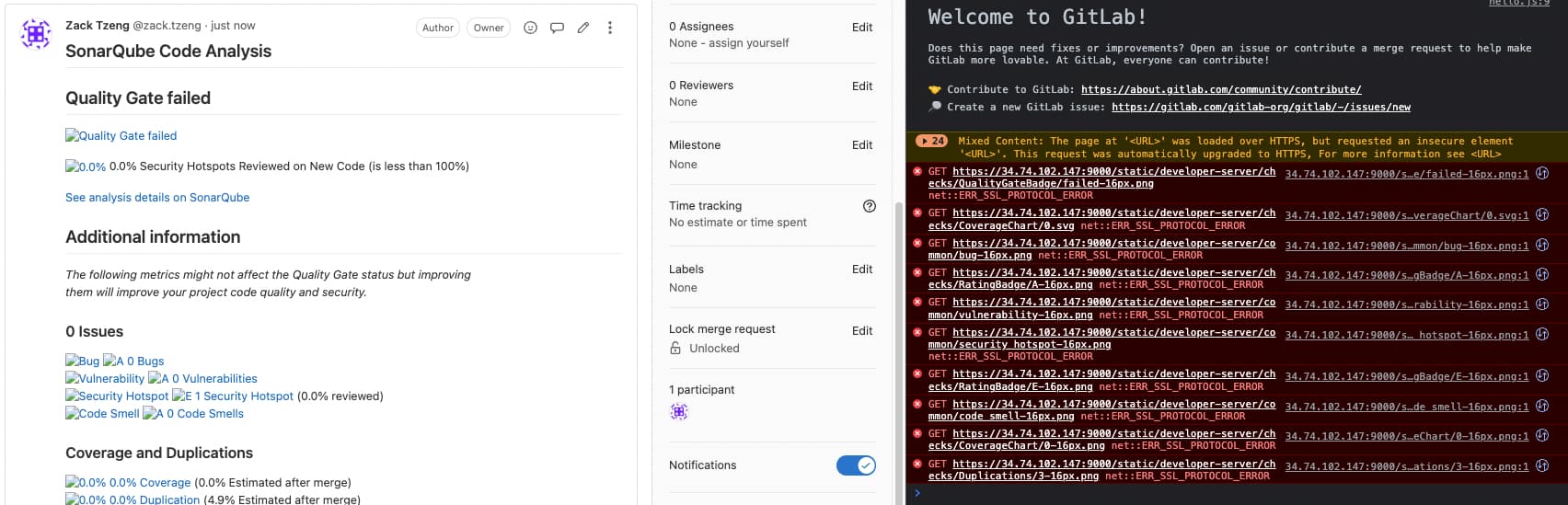

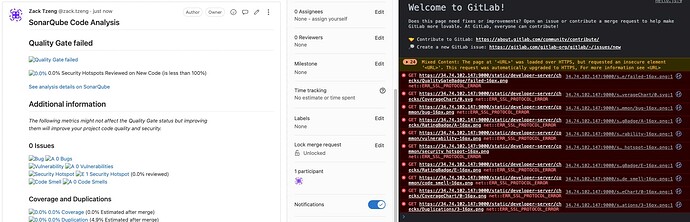

I got this from the console. Looks like certificate is required to eliminate the errors.

Can someone help me with this? Thanks


Did you subsequently restart SonarQube? I don’t think that change fully takes effect until after a restart.
