The .NET code coverage remains unchanged, despite adding new code

SonarQube Server / Community Build
1

Hii, .NET code coverage is not increasing/decresing the % after adding/reducing test cases

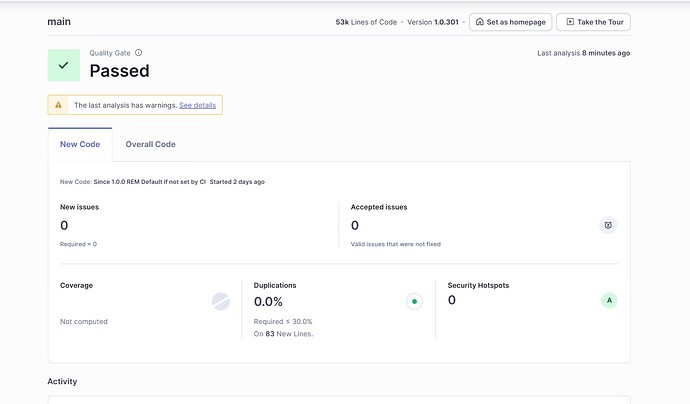

codeco
codeco1165×697 56.1 KB

2

Hi,

41k lines to cover is a lot. You may need to add a lot of tests to shift the percentage. I suggest you concentrate instead on coverage on new code.


HTH,
Ann

3

Hi Ann,

Thank you for your suggestion — I really appreciate it. I wanted to let you know that even after commenting out all the test cases, the reported overall coverage percentage remains unchanged. Additionally, I’m not seeing the expected coverage results for the new code I’ve added. I also reviewed the new code documentation but wasn’t able to find a solution.

If you have any guidance on potential causes or areas I should investigate, it would be very helpful.

codecove
codecove1295×760 54.3 KB

4

Hi,

First, this is a bit apples-and-oranges because your second screenshot shows Overall numbers. Second, why would you comment out all the test cases? Third, your Overall screenshot shows coverage “Not computed”, indicating that you stopped passing in coverage reports. This is moving backwards.


Ann

5

Yes, the screenshot shows the overall numbers, but the issue lies in the code coverage—it is neither increasing nor decreasing.
Secondly, I commented out all the test cases to verify whether the code coverage would drop to zero. If there are no test cases, the coverage should indeed be zero.
Lastly, I am unsure why the coverage reports have stopped being passed, and why it is moving backwards.

I am working on integrating a .NET application with Jenkins and SonarQube. While the Jenkins job builds successfully, the main issue is that code coverage remains static—it is neither increasing nor decreasing. Moreover, coverage data for newly added code is not being displayed at all.

Below is the script I am using:

‘’‘’‘’‘’‘’‘’
@echo off

REM === Basic Configuration ===
set SONAR_HOST_URL=http://190.168.12.345:9000
set SONAR_TOKEN=XXXXXXXXXXXXXXXXXXXXXXXXXXX
set PROJECT_DIR=C:\Users\Administrator\code-coverage\Plasma_AG_Internal\PlasmaAg_API
set COVERAGE_FILE=%PROJECT_DIR%\XUnitTest\coverage.xml
set SONAR_PROJECT_VERSION=1.0.%BUILD_NUMBER%
echo SONAR_PROJECT_VERSION is %SONAR_PROJECT_VERSION%

REM === Git Sync ===
cd “%PROJECT_DIR%”
git checkout cni_sonarqube
git fetch
git pull

REM === SonarQube Scan Start ===
dotnet sonarscanner begin ^
/k:“code-coverage” ^
/v:“%SONAR_PROJECT_VERSION%” ^
/d:sonar.cs.opencover.reportsPaths=“%COVERAGE_FILE%” ^
/d:sonar.host.url=“%SONAR_HOST_URL%” ^
/d:sonar.token=“%SONAR_TOKEN%”

REM === Run Tests with Coverage ===
coverlet “%PROJECT_DIR%\XUnitTest\bin\Debug\net6.0\XUnitTest.dll” ^
–target “dotnet” ^
–targetargs “test "%PROJECT_DIR%\XUnitTest" --no-build” ^
-f opencover ^
-o “%COVERAGE_FILE%”

REM === Build ===
dotnet build --no-incremental

REM === SonarQube Scan End ===
dotnet sonarscanner end /d:sonar.token=“%SONAR_TOKEN%”

echo Script completed.

‘’‘’‘’’

6

Hi,

Please give us the following version information:

  • What is your SonarQube version?
  • What is the version of the Scanner for .NET (MSBuild) that you are using?
  • What version of MSBuild are you using?

And we’ll need the logs:

  • please give us the verbose output of the scanner commands (please run SonarScanner.MSBuild.exe begin /k:“MyProject” /d:sonar.verbose=true as the begin step, and please attach the output of the BEGIN and END steps)
  • please give the output of running MSBuild in verbose mode (/v:d)

In addition, please see the following guides:


Ann

7

Hiii Ann

  • SonarQube Version: Community Edition 25.2.0 (build 102705)
  • SonarScanner for MSBuild Version: 9.0.2
  • MSBuild Version: 17.13.19.12613

here you can see full jenkins job logs

log.txt.log (2.3 MB)

8

Hi,

What’s your order of operations here?

I guess the actual commands aren’t emitted to your Jenkins log(?) but from what I can tell, you run the tests and then build?

You need to flip that order around:

  • begin step
  • build
  • tests
  • end step


HTH,
Ann

9

Hii Ann,

Already I have tried these steps but no impact on code coverage

log.txt (2.3 MB)
