Version:
SonarCloud
error observed
SonarCloud does not recognize a valid SVG element foreignObject
, although it does recognize elements like path
https://developer.mozilla.org/en-US/docs/Web/SVG/Element/foreignObject

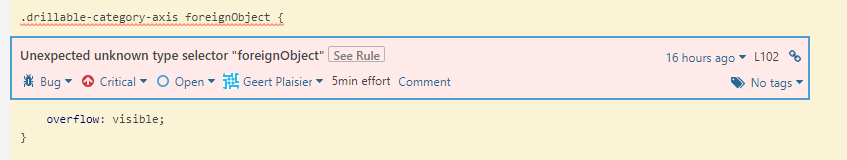

steps to reproduce: see snapshot
potential workaround: non found apart from declaring it as a false-positive, it broke out quality gate since it’s categorized as a bug.
Do I need to do something special to enable recognition of this SVG elements?
Is there anyone from SonarCloud to assist here? I don’t really understand why this false positive occurs… Did anyone else notice the same behavior? Are there some settings I need to adjust?
Hi @Matija_Lukic ,
Thank you for reporting this issue. It is indeed a false positive. I created the corresponding ticket: https://github.com/SonarSource/sonar-css/issues/206
In the meantime the workaround is to add foreignObject
to the “ignoreTypes” parameter of the rule S4670 “Selectors should be known” . Example: ignoreTypes = /(^mat-)|foreignObject/
Cheers,
Nicolas
Thanks Nicolas! Can you just point me to where exactly I should change this parameter in my SonarCloud project?
First you need to have a custom quality profile (skip these steps if you already have one):
Go to your organization
Click on “Quality Profiles” in the menu below the organization name
=> You should be on a page like this one .
Search for the “CSS” quality profile. Click on the dropdown on its right and select “Extend”.
Create your new Quality Profile.
One you have a custom quality profile for CSS you can customize the configuration of the rule:
Go to your organization
Click on “Rules” in the menu below the organization name
Search for the rule named “Selectors should be known”, then select it.
=> You should arrive on a page like this .
At the bottom you have a list of quality profiles where the rule is enabled.
Click “change” on the right of your new quality profile.
Change the “ignoreTypes” field to /(^mat-)|foreignObject/
Finally you need to make sure that the new Quality Profile is used by your project:
Go to your project
Click on “Administration” in the menu below the project name.
Select “Quality Profiles”
Change the CSS quality profile to match your new one.
Now you can reanalyze your project and see the updated result.
