SonarAnalyzer throwing ArgumentOutOfRangeException on Azure DevOps

SonarQube Cloud
, ,
1
  • ALM used - Azure DevOps
  • CI system used - Azure DevOps
  • Scanner used - SonarQube Cloud 3.3.0 / SonarCloudPrepare@3 / DotNetCoreCLI@2
  • Language - C#
  • Error observed - SonarAnalyzer is throwing ArgumentOutOfRange exceptions when analyzing an otherwise harmless-looking C# file.
  • Steps to reproduce
    • Run the SonarCloudPrepare@3 task in Azure DevOps
    • Use DotNetCoreCLI@2 command: 'build' to build a .NET 8 WPF C# project containing only ResourceColors.cs (below)
  • Potential workaround: delete line 70 FlagBlueBrush of ResourceColors.cs
    OR delete line 11 ExcludeFromCodeCoverage attribute
    OR delete line 38 PeacockBlueDark1
    OR delete line 86 DarkSkyBlueLightHoverBrush
    OR delete line 90 IceHoverBrush
    OR add a new SolidColorBrush after line 102
    OR delete the blank lines within the Color and SolidColorBrush code sections, and realign the equal signs within each section
    OR delete all end-of-line comments
    OR change all integer literals to hex notation (e.g. 0xe2)

The workarounds make me suspect this is a bug in SonarAnalyzer.

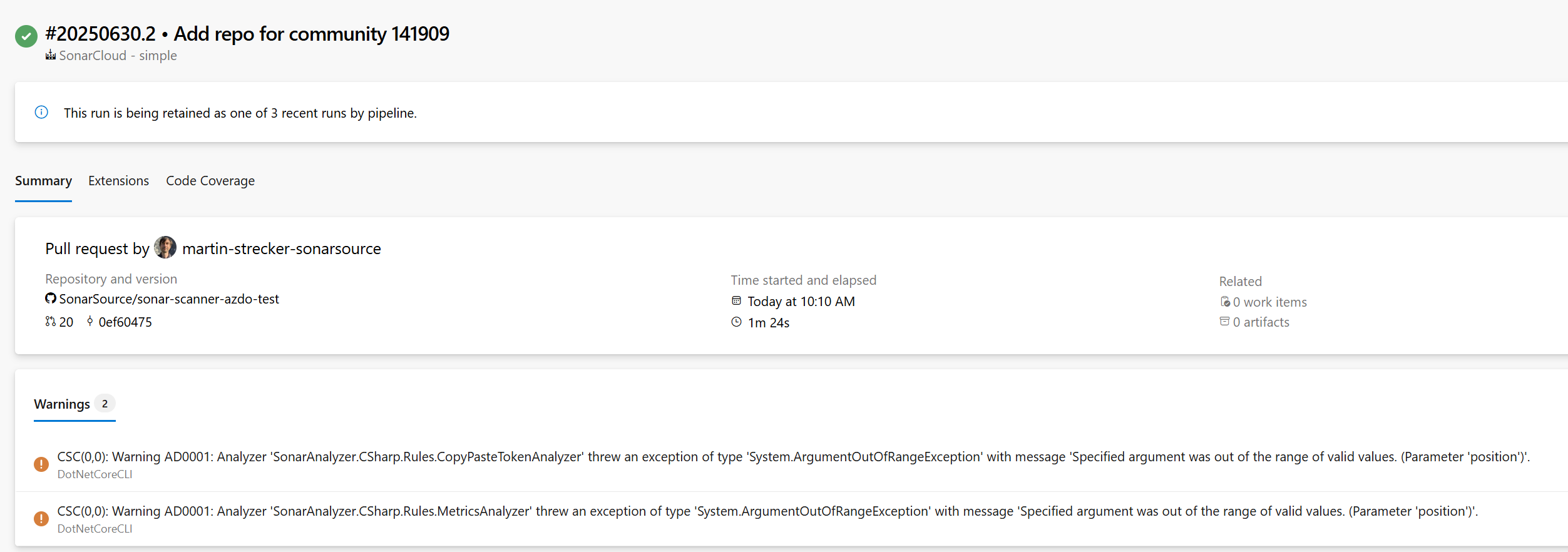

Errors (also shown in Build log farther below)

  • CSC : warning AD0001: Analyzer ‘SonarAnalyzer.CSharp.Rules.CopyPasteTokenAnalyzer’ threw an exception of type ‘System.ArgumentOutOfRangeException’ with message ‘Specified argument was out of the range of valid values. (Parameter ‘position’)’.
  • CSC : warning AD0001: Analyzer ‘SonarAnalyzer.CSharp.Rules.MetricsAnalyzer’ threw an exception of type ‘System.ArgumentOutOfRangeException’ with message ‘Specified argument was out of the range of valid values. (Parameter ‘position’)’.

Build log

2025-05-27T15:12:34.1645643Z ##[section]Starting: Build
2025-05-27T15:12:34.1656611Z ==============================================================================
2025-05-27T15:12:34.1656924Z Task         : .NET Core
2025-05-27T15:12:34.1656986Z Description  : Build, test, package, or publish a dotnet application, or run a custom dotnet command
2025-05-27T15:12:34.1657128Z Version      : 2.256.3
2025-05-27T15:12:34.1657188Z Author       : Microsoft Corporation
2025-05-27T15:12:34.1657271Z Help         : https://docs.microsoft.com/azure/devops/pipelines/tasks/build/dotnet-core-cli
2025-05-27T15:12:34.1657369Z ==============================================================================
2025-05-27T15:12:34.7536704Z [command]C:\Windows\system32\chcp.com 65001
2025-05-27T15:12:34.7681262Z Active code page: 65001
2025-05-27T15:12:34.7800150Z Info: .NET Core SDK/runtime 2.2 and 3.0 are now End of Life(EOL) and have been removed from all hosted agents. If you're using these SDK/runtimes on hosted agents, kindly upgrade to newer versions which are not EOL, or else use UseDotNet task to install the required version.
2025-05-27T15:12:34.8471663Z [command]"C:\Program Files\dotnet\dotnet.exe" build D:\a\1\s\cube-recorder2.sln "-dl:CentralLogger,\"D:\a\_tasks\DotNetCoreCLI_5541a522-603c-47ad-91fc-a4b1d163081b\2.256.3\dotnet-build-helpers\Microsoft.TeamFoundation.DistributedTask.MSBuild.Logger.dll\"*ForwardingLogger,\"D:\a\_tasks\DotNetCoreCLI_5541a522-603c-47ad-91fc-a4b1d163081b\2.256.3\dotnet-build-helpers\Microsoft.TeamFoundation.DistributedTask.MSBuild.Logger.dll\"" --configuration Release /p:TreatWarningsAsErrors=true /p:SourceRevisionId=sandbox/test-sonar-warning|b29c62fd1|build-time_2025-05-27T15:12:33.9341847+00:00_ /p:Verbosity=detailed
2025-05-27T15:12:35.9915035Z   Determining projects to restore...
2025-05-27T15:12:36.5800385Z   Restored D:\a\1\s\WpfUtilities\WpfUtilities.csproj (in 186 ms).
2025-05-27T15:13:10.1747918Z ##[warning]CSC(0,0): Warning AD0001: Analyzer 'SonarAnalyzer.CSharp.Rules.CopyPasteTokenAnalyzer' threw an exception of type 'System.ArgumentOutOfRangeException' with message 'Specified argument was out of the range of valid values. (Parameter 'position')'.
2025-05-27T15:13:10.1760776Z CSC : warning AD0001: Analyzer 'SonarAnalyzer.CSharp.Rules.CopyPasteTokenAnalyzer' threw an exception of type 'System.ArgumentOutOfRangeException' with message 'Specified argument was out of the range of valid values. (Parameter 'position')'. [D:\a\1\s\WpfUtilities\WpfUtilities.csproj]
2025-05-27T15:13:10.1764350Z ##[warning]CSC(0,0): Warning AD0001: Analyzer 'SonarAnalyzer.CSharp.Rules.MetricsAnalyzer' threw an exception of type 'System.ArgumentOutOfRangeException' with message 'Specified argument was out of the range of valid values. (Parameter 'position')'.
2025-05-27T15:13:10.1766059Z CSC : warning AD0001: Analyzer 'SonarAnalyzer.CSharp.Rules.MetricsAnalyzer' threw an exception of type 'System.ArgumentOutOfRangeException' with message 'Specified argument was out of the range of valid values. (Parameter 'position')'. [D:\a\1\s\WpfUtilities\WpfUtilities.csproj]
2025-05-27T15:13:10.2019257Z   WpfUtilities -> D:\a\1\s\WpfUtilities\bin\Release\net8.0-windows\win-x64\WpfUtilities.dll
2025-05-27T15:13:10.2359337Z   Sonar: (WpfUtilities.csproj) Project processed successfully
2025-05-27T15:13:10.2425200Z
2025-05-27T15:13:10.2435281Z Build succeeded.
2025-05-27T15:13:10.2436680Z
2025-05-27T15:13:10.2462540Z CSC : warning AD0001: Analyzer 'SonarAnalyzer.CSharp.Rules.CopyPasteTokenAnalyzer' threw an exception of type 'System.ArgumentOutOfRangeException' with message 'Specified argument was out of the range of valid values. (Parameter 'position')'. [D:\a\1\s\WpfUtilities\WpfUtilities.csproj]
2025-05-27T15:13:10.2463916Z CSC : warning AD0001: Analyzer 'SonarAnalyzer.CSharp.Rules.MetricsAnalyzer' threw an exception of type 'System.ArgumentOutOfRangeException' with message 'Specified argument was out of the range of valid values. (Parameter 'position')'. [D:\a\1\s\WpfUtilities\WpfUtilities.csproj]
2025-05-27T15:13:10.2464722Z     2 Warning(s)
2025-05-27T15:13:10.2466395Z     0 Error(s)
2025-05-27T15:13:10.2466851Z
2025-05-27T15:13:10.2467282Z Time Elapsed 00:00:35.01
2025-05-27T15:13:10.2474144Z
2025-05-27T15:13:10.2475543Z Workload updates are available. Run `dotnet workload list` for more information.
2025-05-27T15:13:10.2585660Z
2025-05-27T15:13:10.2903400Z Info: Azure Pipelines hosted agents have been updated and now contain .Net 5.x SDK/Runtime along with the older .Net Core version which are currently lts. Unless you have locked down a SDK version for your project(s), 5.x SDK might be picked up which might have breaking behavior as compared to previous versions. You can learn more about the breaking changes here: https://docs.microsoft.com/en-us/dotnet/core/tools/ and https://docs.microsoft.com/en-us/dotnet/core/compatibility/ . To learn about more such changes and troubleshoot, refer here: https://docs.microsoft.com/en-us/azure/devops/pipelines/tasks/build/dotnet-core-cli?view=azure-devops#troubleshooting
2025-05-27T15:13:10.3027886Z ##[section]Finishing: Build

ResourceColors.cs

using System.Diagnostics.CodeAnalysis;
using System.Windows.Media;

namespace CathVision.Cube.Recorder.WpfUtilities
{
    /// <summary>
    ///     When adding new colors use the following URL to get a name:
    ///     https://colors.artyclick.com/color-name-finder/
    ///     Sorted in numerical order
    /// </summary>
    [ExcludeFromCodeCoverage(Justification = "Just a color dictionary")]
    public static class ResourceColors
    {
        public static readonly Color Transparent             = Color.FromArgb(0x00, 0x00, 0x00, 0x00);
        public static readonly Color Black                   = Color.FromRgb(0x00, 0x00, 0x00);        //#000000
        public static readonly Color GreenHaze               = Color.FromRgb(0x00, 0xb6, 0x3c);        //#00b63c (ButterscotchTwo but green)
        public static readonly Color HighContrastGreen       = Color.FromRgb(0x07, 0xe8, 0x03);        //#07E803
        public static readonly Color BattleshipGrey          = Color.FromRgb(0x6e, 0x7f, 0x7c);        //#6e7f7c
        public static readonly Color Silver                  = Color.FromRgb(0xB7, 0xBF, 0xBE);        //#b7bfbe
        public static readonly Color ClockGreyDark           = Color.FromRgb(0xba, 0xba, 0xba);        //#bababa
        public static readonly Color Ice                     = Color.FromRgb(0xea, 0xf0, 0xef);        //#eaf0ef
        public static readonly Color IceHover                = Color.FromRgb(0xCB, 0xDA, 0xD8);        //##CBDAD8
        public static readonly Color IceWith20Transparency   = Color.FromArgb(0xCC, 0xea, 0xf0, 0xef); //#e6eaf0ef
        public static readonly Color RecordRed               = Color.FromRgb(0xff, 0x3c, 0x46);        //#ff3c46
        public static readonly Color HighContrastRed         = Color.FromRgb(0xff, 0x0f, 0x1b);        //#FF0F1B
        public static readonly Color ButterscotchTwo         = Color.FromRgb(0xff, 0xb6, 0x3c);        //#ffb63c
        public static readonly Color White                   = Color.FromRgb(0xff, 0xff, 0xff);        //#ffffff
        public static readonly Color WarningYellow           = Color.FromRgb(0xf3, 0xc8, 0x36);        //#f3c836
        public static readonly Color HighContrastYellow      = Color.FromRgb(0xff, 0xf5, 0x11);        //#FFF511
        public static readonly Color BackgroundGrey          = Color.FromRgb(0x3A, 0x3A, 0x3A);        //#3A3A3A
        public static readonly Color TransparentBlack        = Color.FromArgb(130,  0,    0,    0);
        public static readonly Color SemitransparentCoolGrey = Color.FromArgb(0x93, 0x9f, 0x9d, 128);

        public static readonly Color StopWatchPink   = Color.FromRgb(216, 4,  148); //#80494
        public static readonly Color StopWatchPurple = Color.FromRgb(112, 84, 220); //#7054dc

        public static readonly Color PeacockBlueDark2  = Color.FromRgb(0x00, 0x3E, 0x4F); //#003E4F
        public static readonly Color PeacockBlueDark1  = Color.FromRgb(0x00, 0x53, 0x6A); //#00536A
        public static readonly Color PeacockBlue       = Color.FromRgb(0x00, 0x68, 0x85); //#006885x
        public static readonly Color PeacockBlueLight1 = Color.FromRgb(0x33, 0x7A, 0x94); //#337A94
        public static readonly Color PeacockBlueLight2 = Color.FromRgb(0x66, 0x8D, 0xA3); //#668DA3
        public static readonly Color PeacockBlueLight4 = Color.FromRgb(0xe5, 0xef, 0xf2); //#e5eff2 (90% lighter version of PeacockBlue)

        public static readonly Color FlagBlue = Color.FromRgb(88, 255, 254); //#58FFFE

        public static readonly Color TealBlue      = Color.FromRgb(0x00, 0x95, 0xa6); //#0095a6
        public static readonly Color TealBlueDark1 = Color.FromRgb(0x00, 0x4C, 0x55); //#004C55
        public static readonly Color TealBlueDark2 = Color.FromRgb(0x00, 0x39, 0x40); //#003940

        public static readonly Color TonedBlue             = Color.FromRgb(0x10, 0x64, 0x76); //#106476
        public static readonly Color GreenBlue             = Color.FromRgb(0x00, 0xab, 0xa0); //#00aba0
        public static readonly Color GreenBlueHover        = Color.FromRgb(0x5d, 0xaa, 0x9B); //#5DAA9B
        public static readonly Color CathVisionLogoBlue    = Color.FromRgb(0x09, 0x43, 0x5a); //#09435A
        public static readonly Color ScreenBg              = Color.FromRgb(0x27, 0x27, 0x27); //#272727
        public static readonly Color ScreenBgAccent        = Color.FromRgb(0x67, 0x67, 0x67); //#373737
        public static readonly Color DarkSkyBlueHover      = Color.FromRgb(0x41, 0x8d, 0xc9); //#418dc9
        public static readonly Color DarkSkyBlue           = Color.FromRgb(0x4d, 0xa7, 0xed); //#4da7ed (85% darker version of DarkSkyBlue)
        public static readonly Color CoolGrey              = Color.FromRgb(0x93, 0x9f, 0x9d); //#939f9d
        public static readonly Color DarkSkyBlueLightHover = Color.FromRgb(0xca, 0xe5, 0xfa); //#cae5fa
        public static readonly Color ClockGrey             = Color.FromRgb(0xcf, 0xcf, 0xcf); //#cfcfcf
        public static readonly Color PaleAqua              = Color.FromRgb(0xd2, 0xde, 0xdb); //#d2dedb
        public static readonly Color PaleGrey              = Color.FromRgb(0xf4, 0xf7, 0xf7); //#f4f7f7

        public static readonly Color CarolinaBlue = Color.FromRgb(0x59, 0xa4, 0xda); //#59a4da

        public static readonly SolidColorBrush BlackBrush                 = MakeBrush(Black);
        public static readonly SolidColorBrush PeacockBlueBrush           = MakeBrush(PeacockBlue);
        public static readonly SolidColorBrush PeacockBlueLight2Brush     = MakeBrush(PeacockBlueLight2);
        public static readonly SolidColorBrush PeacockBlueLight4Brush     = MakeBrush(PeacockBlueLight4);
        public static readonly SolidColorBrush FlagBlueBrush              = MakeBrush(FlagBlue);
        public static readonly SolidColorBrush TealBlueBrush              = MakeBrush(TealBlue);
        public static readonly SolidColorBrush TonedBlueBrush             = MakeBrush(TonedBlue);
        public static readonly SolidColorBrush GreenBlueBrush             = MakeBrush(GreenBlue);
        public static readonly SolidColorBrush GreenBlueHoverBrush        = MakeBrush(GreenBlueHover);
        public static readonly SolidColorBrush GreenHazeBrush             = MakeBrush(GreenHaze);
        public static readonly SolidColorBrush HighContrastGreenBrush     = MakeBrush(HighContrastGreen);
        public static readonly SolidColorBrush CathVisionLogoBlueBrush    = MakeBrush(CathVisionLogoBlue);
        public static readonly SolidColorBrush ScreenBgBrush              = MakeBrush(ScreenBg);
        public static readonly SolidColorBrush ScreenBgAccentBrush        = MakeBrush(ScreenBgAccent);
        public static readonly SolidColorBrush DarkSkyBlueHoverBrush      = MakeBrush(DarkSkyBlueHover);
        public static readonly SolidColorBrush DarkSkyBlueBrush           = MakeBrush(DarkSkyBlue);
        public static readonly SolidColorBrush BattleshipGreyBrush        = MakeBrush(BattleshipGrey);
        public static readonly SolidColorBrush CoolGreyBrush              = MakeBrush(CoolGrey);
        public static readonly SolidColorBrush SilverBrush                = MakeBrush(Silver);
        public static readonly SolidColorBrush ClockGreyDarkBrush         = MakeBrush(ClockGreyDark);
        public static readonly SolidColorBrush DarkSkyBlueLightHoverBrush = MakeBrush(DarkSkyBlueLightHover);
        public static readonly SolidColorBrush ClockGreyBrush             = MakeBrush(ClockGrey);
        public static readonly SolidColorBrush PaleAquaBrush              = MakeBrush(PaleAqua);
        public static readonly SolidColorBrush IceBrush                   = MakeBrush(Ice);
        public static readonly SolidColorBrush IceHoverBrush              = MakeBrush(IceHover);
        public static readonly SolidColorBrush PaleGreyBrush              = MakeBrush(PaleGrey);
        public static readonly SolidColorBrush RecordRedBrush             = MakeBrush(RecordRed);
        public static readonly SolidColorBrush HighContrastRedBrush       = MakeBrush(HighContrastRed);
        public static readonly SolidColorBrush ButterscotchTwoBrush       = MakeBrush(ButterscotchTwo);
        public static readonly SolidColorBrush WhiteBrush                 = MakeBrush(White);
        public static readonly SolidColorBrush WarningYellowBrush         = MakeBrush(WarningYellow);
        public static readonly SolidColorBrush HighContrastYellowBrush    = MakeBrush(HighContrastYellow);
        public static readonly SolidColorBrush BackgroundGreyBrush        = MakeBrush(BackgroundGrey);
        public static readonly SolidColorBrush TransparentBrush           = MakeBrush(Transparent);

        public static readonly SolidColorBrush StopWatchPinkBrush   = MakeBrush(StopWatchPink);
        public static readonly SolidColorBrush StopWatchPurpleBrush = MakeBrush(StopWatchPurple);

        /// <summary>
        ///     Returns either white or black depending on (background) color given.
        /// </summary>
        /// <param name="backgroundColor">The background color.</param>
        /// <returns>Black or white.</returns>
        public static Color GetForegroundColor(Color backgroundColor) => ShouldBeBlack(backgroundColor) ? Black : White;

        /// <summary>
        ///     Returns either white or black depending on (background) color given.
        /// </summary>
        /// <param name="backgroundBrush">The background color.</param>
        /// <returns>Black or white.</returns>
        public static SolidColorBrush GetForegroundColor(SolidColorBrush backgroundBrush) => ShouldBeBlack(backgroundBrush.Color) ? BlackBrush : WhiteBrush;

        private static bool ShouldBeBlack(Color backgroundColor) => CalculateBrightness(backgroundColor) > 127;

        /// <summary>
        ///     https://www.nbdtech.com/Blog/archive/2008/04/27/Calculating-the-Perceived-Brightness-of-a-Color.aspx
        /// </summary>
        private static int CalculateBrightness(Color backgroundColor) =>
            (int)Math.Sqrt(
                backgroundColor.R * backgroundColor.R * .241 +
                backgroundColor.G * backgroundColor.G * .691 +
                backgroundColor.B * backgroundColor.B * .068);

        private static SolidColorBrush MakeBrush(Color color)
        {
            SolidColorBrush brush = new(color);
            brush.Freeze();
            return brush;
        }
    }
}
