SAML error with nginx reverse proxy

SonarQube Server / Community Build
, , ,
1
  • Sonarqube Version 9.0 (build 45539)
    • No plugins
  • SAML provider Azure AD

Sonarqube runs as: http://localhost:9000;
Nginx run on https://foo.com:443 and redirects the traffic to http://localhost:9000

When i try to login, the following error is shown:

Log message:
2021.07.12 15:36:04 ERROR web[AXqauDJWa+2Vp2SJAAEp][c.o.s.a.SamlResponse] The response was received at https://localhost:9000/oauth2/callback/saml instead of https://foo.comoauth2/callback/saml
2021.07.12 15:36:04 ERROR web[AXqauDJWa+2Vp2SJAAEp][c.o.saml2.Auth] processResponse error. invalid_response

Iā€™ve configured the SAML provider and similar configurations already work with other tools.
The redirect URL on Azure AD is configured to the public address https://foo.com/oauth2/callback/saml

nginx reverse proxy config:

	server {
		listen 443 ssl;
		server_name foo.com;

		ssl_certificate foo;
		ssl_certificate_key foo;

		client_max_body_size 5000M;


		location / {
			#don't let google index this page
			add_header  X-Robots-Tag "noindex, nofollow, nosnippet, noarchive";
			proxy_pass http://localhost:9000;

			proxy_set_header X-Forwarded-Host $http_host;
			proxy_set_header X-Forwarded-Proto $scheme;
			proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
			proxy_http_version 1.1;
			proxy_set_header Upgrade $http_upgrade;
			proxy_set_header Connection "upgrade";
			}
	}

I guess it is related with the base url.
I did set https://foo.com as server base URL in the ui

image776Ɨ162 7.12 KB

I also set it in the sonar properties files directly.
sonar.core.serverBaseURL=https://foo.com

What needs to be changed in order to get SAML working in this szenario?
Iā€™ve checked most of the forum entries about this topic but was unable to find a solution.

2 Likes
2

I believe you need this additional line:

proxy_set_header Host $host;

After hitting the same error on a new server setup and scouring these posts I realized the doc actually covers this here: Operating the Server | SonarQube Docs and there is a post on handling this case on IIS here: SonarQube Users: Let's talk about IIS and SAML Authentication!

I thought X-Forwarded-Host would accomplish this, but it did not work for me. I needed to set the ā€œHostā€ header.

In my case I also added:

proxy_set_header X-Forwarded-Proto https;

although I think your $scheme is covering this since your error msg shows https:// in both URLs already.

I hope this helps you (and/or someone else!)

5 Likes
3

proxy_set_header Host $host;
This did the trick.

Now it SAML seems to be configured ok, but i cannot authenticate.

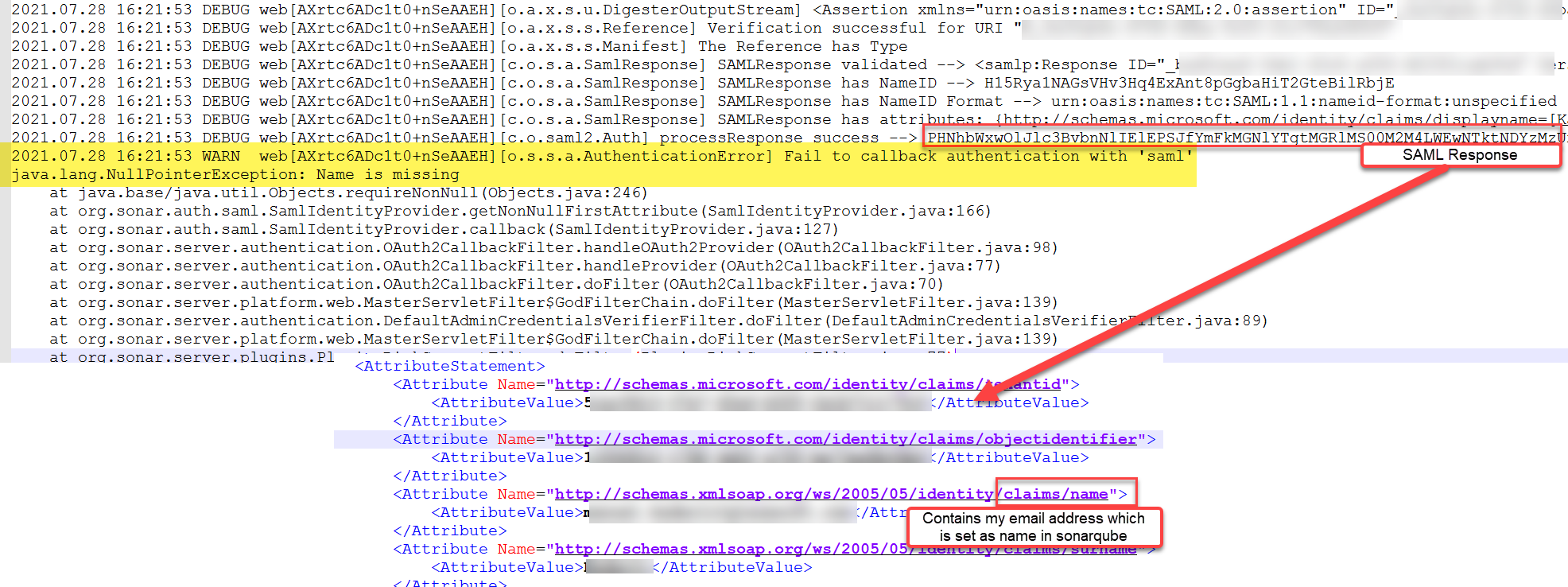

Error message in the log: Fail to callback authentication with ā€˜samlā€™
java.lang.NullPointerException: Name is missing

image1972Ɨ738 148 KB

Any idea what is wrong here?

4

Having the same problem, Nginx configured exactly how its stated in official docs. error Iā€™m getting from SQ container:

ERROR web[AXxUzLA1NnhuSmG1AAB5][c.o.s.a.SamlResponse] The response was received at http://sonarqube:9000/oauth2/callback/saml instead of https://sonarqube-hello.msappproxy.net/oauth2/callback/saml
ERROR web[AXxUzLA1NnhuSmG1AAB5][c.o.saml2.Auth] processResponse error. invalid_response

Azureā€™s AD logs are showing successful auth but SQ UI displays ā€˜not authorizedā€™ errorā€¦ any leads?

5

Thatā€™s all work for me and after 1-1.5days troubleshooting thanks Joshoua.

Regards.

Greate line!
proxy_set_header X-Forwarded-Proto $scheme

2 Likes
6

This is exactly what I was looking for. Saved a lot of my debugging time, Thanks a lot !!!

1 Like
