My ASP WebForms Projects are not scanned by sonarqube

Boris_Feuerpeil · August 21, 2020, 11:38am

Hi,

all of my ASP WebForms Projects are not scanned by sonarqube. After the Scan of a Solution i can see that those Projects are missing in the Code-Section, and in the Project Information the Lines of Code are 0.

I am using sonarqube-8.4.1.35646.

I installed and scanned my project with the help from this tutorial:
https://docs.sonarqube.org/latest/setup/get-started-2-minutes/

In the Code Section i see that just a few of my projects in the solution are scanned

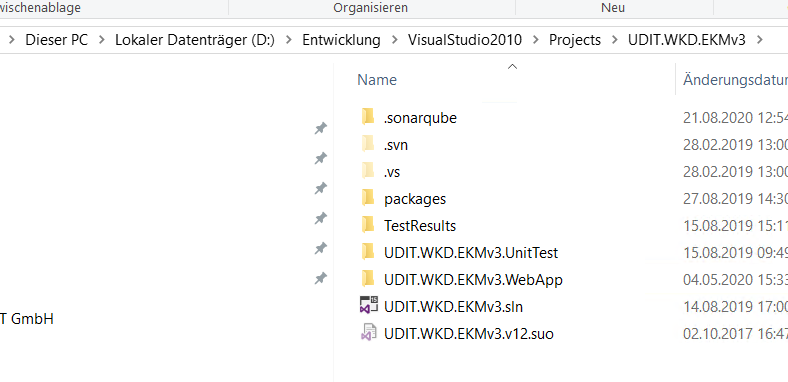

this is the solution:

At least the project UDIT.WKD.EKMv3.WebApp should get analyzed, but its missing. its a regular .net 4.5 ASP WebForms Application.

here is my output:

D:\Entwicklung\VisualStudio2010\Projects\UDIT.WKD.EKMv3>SonarScanner.MSBuild.exe end
SonarScanner for MSBuild 4.10
Using the .NET Framework version of the Scanner for MSBuild
Post-processing started.
Calling the SonarQube Scanner...
INFO: Scanner configuration file: D:\Programme\sonar-scanner-msbuild-4.10.0.19059-net46\sonar-scanner-4.4.0.2170\bin\..\conf\sonar-scanner.properties
INFO: Project root configuration file: D:\Entwicklung\VisualStudio2010\Projects\UDIT.WKD.EKMv3\.sonarqube\out\sonar-project.properties
INFO: SonarScanner 4.4.0.2170
INFO: Java 1.8.0_261 Oracle Corporation (32-bit)
INFO: Windows 10 10.0 x86
INFO: User cache: C:\Users\boris.feuerpeil.UDIT\.sonar\cache
INFO: Scanner configuration file: D:\Programme\sonar-scanner-msbuild-4.10.0.19059-net46\sonar-scanner-4.4.0.2170\bin\..\conf\sonar-scanner.properties
INFO: Project root configuration file: D:\Entwicklung\VisualStudio2010\Projects\UDIT.WKD.EKMv3\.sonarqube\out\sonar-project.properties
INFO: Analyzing on SonarQube server 8.4.1
INFO: Default locale: "de_DE", source code encoding: "windows-1252" (analysis is platform dependent)
WARN: SonarScanner will require Java 11 to run starting in SonarQube 8.x
INFO: Load global settings
INFO: Load global settings (done) | time=406ms
INFO: Server id: BF41A1F2-AXQP8eOSnrIOsLGUMmVf
INFO: User cache: C:\Users\boris.feuerpeil.UDIT\.sonar\cache
INFO: Load/download plugins
INFO: Load plugins index
INFO: Load plugins index (done) | time=383ms
INFO: Load/download plugins (done) | time=423ms
INFO: Process project properties
INFO: Process project properties (done) | time=15ms
INFO: Execute project builders
INFO: Execute project builders (done) | time=16ms
INFO: Project key: EKM
INFO: Base dir: D:\Entwicklung\VisualStudio2010\ClassLibrary
INFO: Working dir: D:\Entwicklung\VisualStudio2010\Projects\UDIT.WKD.EKMv3\.sonarqube\out\.sonar
INFO: Load project settings for component key: 'EKM'
INFO: Load project settings for component key: 'EKM' (done) | time=359ms
INFO: Load quality profiles
INFO: Load quality profiles (done) | time=416ms
INFO: Load active rules
INFO: Load active rules (done) | time=6237ms
INFO: Indexing files...
INFO: Project configuration:
INFO: Indexing files of module 'UDIT.WKD.General.Model'
INFO:   Base dir: D:\Entwicklung\VisualStudio2010\ClassLibrary\UDIT.WKD.General\UDIT.WKD.General.Model
INFO:   Source paths: CostCentre.cs, Account.cs, AddisonSupplierMapping.cs, Address...
INFO: Indexing files of module 'UDIT.WKD.General.DataAccess.Contracts'
INFO:   Base dir: D:\Entwicklung\VisualStudio2010\ClassLibrary\UDIT.WKD.General\UDIT.WKD.General.DataAccess.Contracts
INFO:   Source paths: Accounting/IAccountingWorkflowRepository.cs, Addison/IAddison...
INFO: Indexing files of module 'UDIT.Tools.ASP.WebForms'
INFO:   Base dir: D:\Entwicklung\VisualStudio2010\ClassLibrary\UDIT.Tools.ASP.WebForms
INFO:   Source paths: CollectionExtensions.cs, DataGridSorting/SortExpressionConver...
INFO: Indexing files of module 'EKM'
INFO:   Base dir: D:\Entwicklung\VisualStudio2010\ClassLibrary
INFO: 89 files indexed
INFO: Quality profile for cs: Sonar way
INFO: ------------- Run sensors on module UDIT.WKD.General.Model
INFO: Load metrics repository
INFO: Load metrics repository (done) | time=361ms
INFO: Sensor SonarCSS Rules [cssfamily]
INFO: No CSS, PHP, HTML or VueJS files are found in the project. CSS analysis is skipped.
INFO: Sensor SonarCSS Rules [cssfamily] (done) | time=0ms
INFO: Sensor JaCoCo XML Report Importer [jacoco]
INFO: 'sonar.coverage.jacoco.xmlReportPaths' is not defined. Using default locations: target/site/jacoco/jacoco.xml,target/site/jacoco-it/jacoco.xml,build/reports/jacoco/test/jacocoTestReport.xml
INFO: No report imported, no coverage information will be imported by JaCoCo XML Report Importer
INFO: Sensor JaCoCo XML Report Importer [jacoco] (done) | time=16ms
INFO: Sensor C# Properties [csharp]
WARN: Analyzer working directory does not exist: 'D:\Entwicklung\VisualStudio2010\Projects\UDIT.WKD.EKMv3\.sonarqube\out\1\output-cs'. Analyzer results won't be loaded from this directory.
INFO: Sensor C# Properties [csharp] (done) | time=0ms
INFO: Sensor JavaXmlSensor [java]
INFO: Sensor JavaXmlSensor [java] (done) | time=0ms
INFO: Sensor HTML [web]
INFO: Sensor HTML [web] (done) | time=7ms
INFO: ------------- Run sensors on module UDIT.Tools.ASP.WebForms
INFO: Sensor SonarCSS Rules [cssfamily]
INFO: No CSS, PHP, HTML or VueJS files are found in the project. CSS analysis is skipped.
INFO: Sensor SonarCSS Rules [cssfamily] (done) | time=0ms
INFO: Sensor JaCoCo XML Report Importer [jacoco]
INFO: 'sonar.coverage.jacoco.xmlReportPaths' is not defined. Using default locations: target/site/jacoco/jacoco.xml,target/site/jacoco-it/jacoco.xml,build/reports/jacoco/test/jacocoTestReport.xml
INFO: No report imported, no coverage information will be imported by JaCoCo XML Report Importer
INFO: Sensor JaCoCo XML Report Importer [jacoco] (done) | time=0ms
INFO: Sensor C# Properties [csharp]
WARN: Analyzer working directory does not exist: 'D:\Entwicklung\VisualStudio2010\Projects\UDIT.WKD.EKMv3\.sonarqube\out\0\output-cs'. Analyzer results won't be loaded from this directory.
INFO: Sensor C# Properties [csharp] (done) | time=0ms
INFO: Sensor JavaXmlSensor [java]
INFO: Sensor JavaXmlSensor [java] (done) | time=0ms
INFO: Sensor HTML [web]
INFO: Sensor HTML [web] (done) | time=16ms
INFO: ------------- Run sensors on module UDIT.WKD.General.DataAccess.Contracts
INFO: Sensor SonarCSS Rules [cssfamily]
INFO: No CSS, PHP, HTML or VueJS files are found in the project. CSS analysis is skipped.
INFO: Sensor SonarCSS Rules [cssfamily] (done) | time=0ms
INFO: Sensor JaCoCo XML Report Importer [jacoco]
INFO: 'sonar.coverage.jacoco.xmlReportPaths' is not defined. Using default locations: target/site/jacoco/jacoco.xml,target/site/jacoco-it/jacoco.xml,build/reports/jacoco/test/jacocoTestReport.xml
INFO: No report imported, no coverage information will be imported by JaCoCo XML Report Importer
INFO: Sensor JaCoCo XML Report Importer [jacoco] (done) | time=0ms
INFO: Sensor C# Properties [csharp]
WARN: Analyzer working directory does not exist: 'D:\Entwicklung\VisualStudio2010\Projects\UDIT.WKD.EKMv3\.sonarqube\out\2\output-cs'. Analyzer results won't be loaded from this directory.
INFO: Sensor C# Properties [csharp] (done) | time=0ms
INFO: Sensor JavaXmlSensor [java]
INFO: Sensor JavaXmlSensor [java] (done) | time=0ms
INFO: Sensor HTML [web]
INFO: Sensor HTML [web] (done) | time=0ms
INFO: ------------- Run sensors on module EKM
INFO: Sensor SonarCSS Rules [cssfamily]
INFO: No CSS, PHP, HTML or VueJS files are found in the project. CSS analysis is skipped.
INFO: Sensor SonarCSS Rules [cssfamily] (done) | time=0ms
INFO: Sensor JaCoCo XML Report Importer [jacoco]
INFO: 'sonar.coverage.jacoco.xmlReportPaths' is not defined. Using default locations: target/site/jacoco/jacoco.xml,target/site/jacoco-it/jacoco.xml,build/reports/jacoco/test/jacocoTestReport.xml
INFO: No report imported, no coverage information will be imported by JaCoCo XML Report Importer
INFO: Sensor JaCoCo XML Report Importer [jacoco] (done) | time=0ms
INFO: Sensor JavaXmlSensor [java]
INFO: Sensor JavaXmlSensor [java] (done) | time=0ms
INFO: Sensor C# [csharp]
INFO: Importing 3 Roslyn reports
INFO: Load project repositories
INFO: Load project repositories (done) | time=363ms
WARN: Rule CS0108 was not found in the SARIF report, assuming default severity
WARN: Rule CS0108 was not found in the SARIF report, assuming default severity
INFO: Sensor C# [csharp] (done) | time=459ms
INFO: ------------- Run sensors on project
INFO: Sensor Zero Coverage Sensor
INFO: Sensor Zero Coverage Sensor (done) | time=0ms
INFO: SCM Publisher SCM provider for this project is: svn
INFO: SCM Publisher 89 source files to be analyzed
INFO: 40/89 source files have been analyzed
INFO: SCM Publisher 89/89 source files have been analyzed (done) | time=17597ms
INFO: CPD Executor Calculating CPD for 0 files
INFO: CPD Executor CPD calculation finished (done) | time=0ms
INFO: Analysis report generated in 144ms, dir size=229 KB
INFO: Analysis report compressed in 217ms, zip size=88 KB
INFO: Analysis report uploaded in 361ms
INFO: ANALYSIS SUCCESSFUL, you can browse http://localhost:9000/dashboard?id=EKM
INFO: Note that you will be able to access the updated dashboard once the server has processed the submitted analysis report
INFO: More about the report processing at http://localhost:9000/api/ce/task?id=AXQQqcIpBrKMYQMnRrJU
INFO: Analysis total time: 28.388 s
INFO: ------------------------------------------------------------------------
INFO: EXECUTION SUCCESS
INFO: ------------------------------------------------------------------------
INFO: Total time: 36.141s
INFO: Final Memory: 13M/32M
INFO: ------------------------------------------------------------------------
The SonarQube Scanner has finished
12:56:34.996  Post-processing succeeded.

D:\Entwicklung\VisualStudio2010\Projects\UDIT.WKD.EKMv3>

Boris_Feuerpeil · August 24, 2020, 6:38am

Any Help please?

Andrei_Epure · August 25, 2020, 12:26pm

hi @Boris_Feuerpeil and welcome to the community!

what is the version of Scanner for MSBuild you are using?
what is the version of MSBuild you are using?
what are the commands you are running to do the analysis?
are you running all commands from the same folder?
please give us the verbose output of the END step (please run SonarScanner.MSBuild.exe begin /k:"MyProject" /d:sonar.verbose=true as the BEGIN step, and please attach the output of END step)
please give the diag output of the build step ( msbuild /v:diag)

Boris_Feuerpeil · August 25, 2020, 2:17pm

Hi Andrei,

what is the version of Scanner for MSBuild you are using?
sonar-scanner-msbuild-4.10.0.19059-net46
what is the version of MSBuild you are using?
14.0
what are the commands you are running to do the analysis?
SonarScanner.MSBuild.exe begin /k:“EKM” /d:sonar.host.url=“http://localhost:9000”
“C:\Program Files (x86)\MSBuild\14.0\Bin\MsBuild.exe” /t:Rebuild /p:VisualStudioVersion=14.0
SonarScanner.MSBuild.exe end
are you running all commands from the same folder?
yes, from the solution Folder
please give us the verbose output of the END step (please run SonarScanner.MSBuild.exe begin /k:"MyProject" /d:sonar.verbose=true as the BEGIN step, and please attach the output of END step)
See the Attachment output.zip
please give the diag output of the build step ( msbuild /v:diag )
See the Attachment output.zip

Thank you for your help

OUTPUT.zip (366.8 KB)

Andrei_Epure · August 25, 2020, 3:21pm

You can see what files are marked as source in <PROJECT_GUID>.sonar.sources=\ in the END_OUTPUT logs. I don’t see any mention for the project you mention UDIT.WKD.EKMv3.WebApp in the END step.

I see in the logs a reference to VisualStudio2010. You need to use MSBuild.exe that comes with Visual Studio 2015 Update 3 (or Visual Studio 2017 any update) (see similar thread and also this solution from another thread).

You should also use the latest Scanner for MSBuild, it may fix issues.

Boris_Feuerpeil · August 26, 2020, 7:17am

UDIT.WKD.EKMv3.WebApp is a regular .net WebForms Project (VB in this case), See here:

The VisualStudio2010 reference you saw is missleading. Its just a Folder in the FileSystem. We use VS 2017. See here:

14.0 is the msbuild.exe from Visualstudio 2017 as far as i know. But i also tried msbuild 15.0, also doesnt work.

4.10 is the current Version of SonarScanner i use, and the newest Version i got from here:
https://docs.sonarqube.org/latest/analysis/scan/sonarscanner-for-msbuild/

Boris_Feuerpeil · August 26, 2020, 8:21am

Here are my outputs, when i use MSBUILD 15.0. See the Zipfile.

OUTPUT.zip (203.5 KB)

here the commands i executed:

SonarScanner.MSBuild.exe begin /k:“EKM” /d:sonar.verbose=true
“C:\Program Files (x86)\Microsoft Visual Studio\2017\BuildTools\MSBuild\15.0\Bin\MsBuild.exe” /t:Rebuild /v:diag > c:\MSBUILD_OUTPUT.txt
SonarScanner.MSBuild.exe end > c:\MSBUILD_END_OUTPUT.txt

Boris_Feuerpeil · August 31, 2020, 7:02am

so, no solution for my problem?

Andrei_Epure · September 11, 2020, 10:57am

hi @Boris_Feuerpeil

D:\Entwicklung\VisualStudio2010\Projects\UDIT.WKD.EKMv3\UDIT.WKD.EKMv3.WebApp\UDIT.WKD.EKMv3.WebApp.vbproj(2055,11): error MSB4226: Das importierte Projekt “C:\Program Files (x86)\Microsoft Visual Studio\2017\BuildTools\MSBuild\Microsoft\VisualStudio\v15.0\WebApplications\Microsoft.WebApplication.targets” wurde nicht gefunden. Es wurde versucht “WebApplications\Microsoft.WebApplication.targets” in den Ausweichsuchpfaden fr $(VSToolsPath) - “C:\Program Files (x86)\MSBuild\Microsoft\VisualStudio\v15.0” zu finden. Diese Suchpfade werden in “C:\Program Files (x86)\Microsoft Visual Studio\2017\BuildTools\MSBuild\15.0\Bin\MSBuild.exe.Config” definiert. Vergewissern Sie sich, dass der Pfad in der -Deklaration korrekt und die Datei auf einem Datentr„ger in einem der Suchpfade vorhanden ist.

Are these build errors normal in your build pipeline? I believe this is the project that is missing , right?
